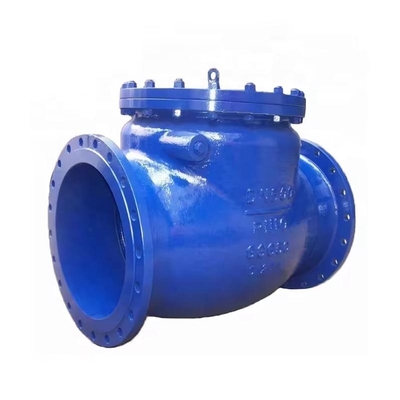

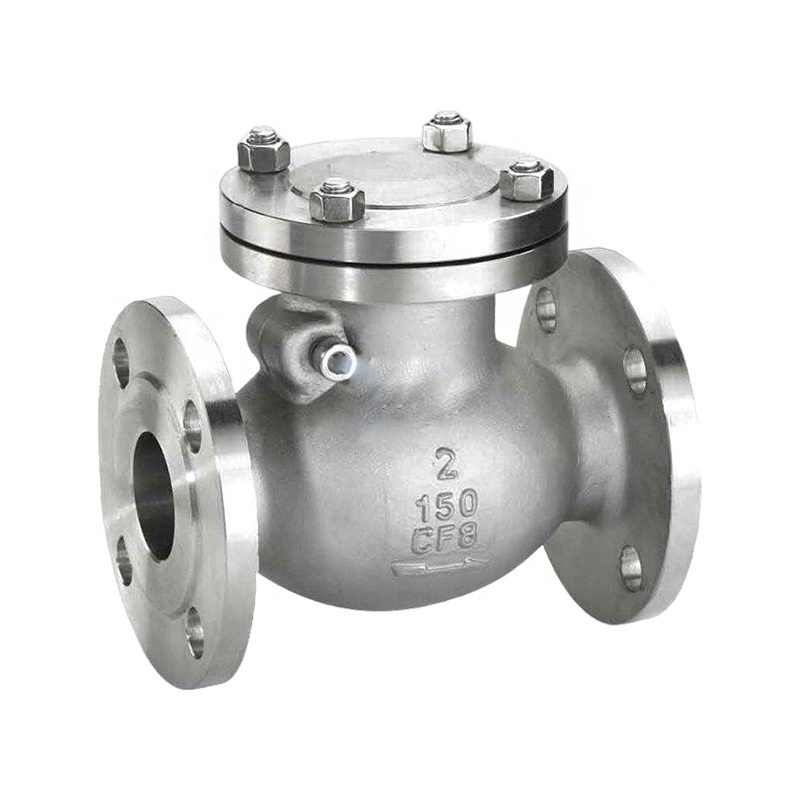

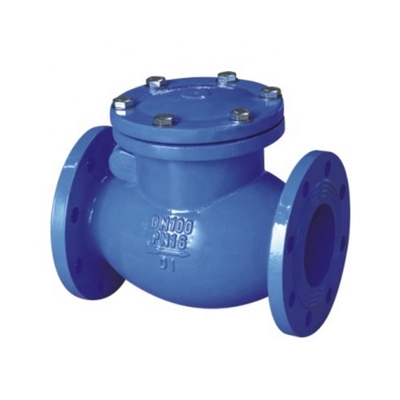

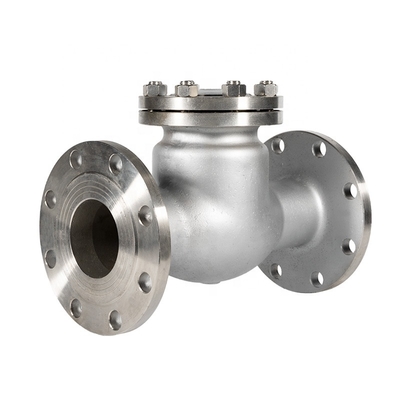

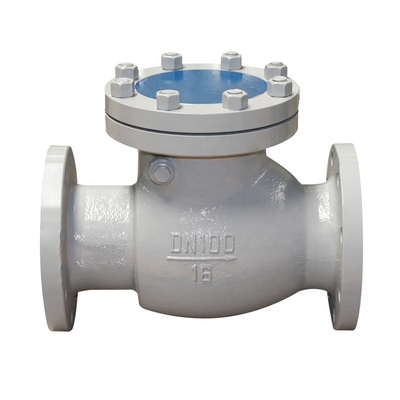

Air Compressor Swing Check Valve Stainless Steel Bronze 1/2 Inchi Class 300 Kitz

Product Details:

Place of Origin:	Henan, China

Contact Now

Detailed Product Description

Application:	General	Warranty:	1 Year
Power:	Manual	Structure:	Check
Customized Support:	OEM	Product Name:	Air Compressor Swing Check Valve Stainless Steel Bronze 1/2 Inchi
Keyword:	Check Valve	Calibration Range:	DN40~DN600
Pressure Level:	1.0~2.5MPa	Temperature Range:	-10℃~+220℃
Transmission Mode:	Manual	Applicable Media:	Water, Oil, Gas, Etc
Main Material:	Ductile Iron/CS/SS	Type:	Check Valve

Air compressor swing check valve stainless steel bronze 1/2 inchi class 300 kitz

Main technical parameters

Nominal pressure	PN10/PN16/PN25/PN40/PN64,125LB/150LB/300LB5K/10K/16K
Face to face standard	GB/T12221-2005, BS5153.ASME B16.10. DIN F6, EN558-1. JIS B2002
Flange connection standard	GB/T17241.6, GB/T9113-2010, EN1092-2JIS B2212
Test standard	GB/T13927-2008. API598
Applicable media	Water, oil, gas, etc

Product structure diagram

Maximum pressure conditions

Size	Max pressure (bar)	Min/Max Temp (℃)	Test Pressure (bar)
			Shell	Seat
DN40-DN600	10.0/16.0/25.0	-10℃ +220℃	15.0/24.0/37.5	11.0/17.6/27.5

Dimensions

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
