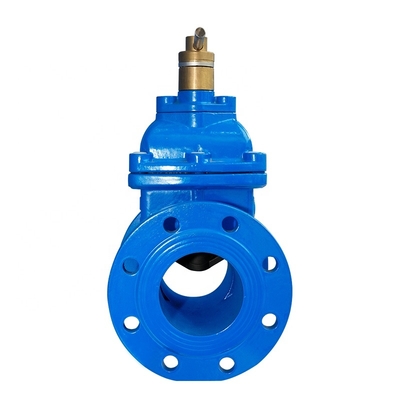

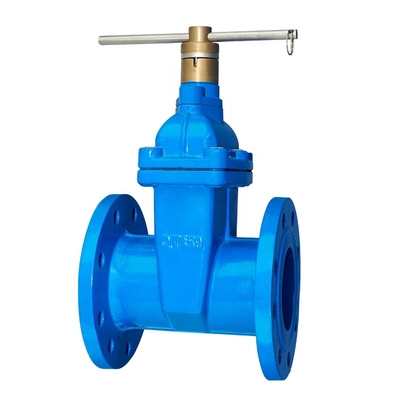

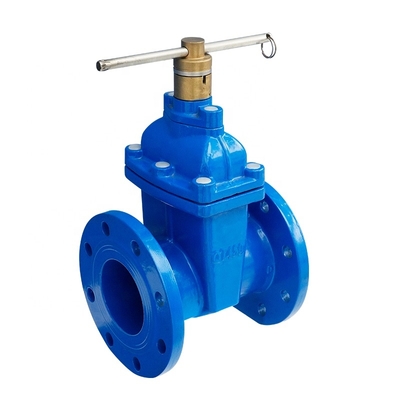

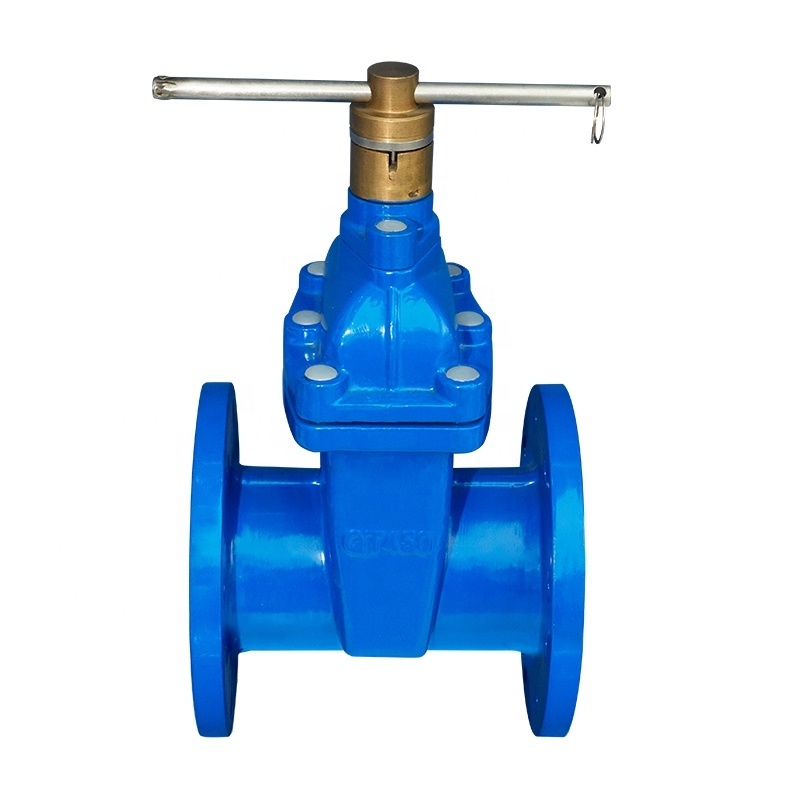

Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves

Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves

  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
  • Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves
Product Details:
Place of Origin: Henan, China
Model Number: CZ45X-10Q
Contact Now
Detailed Product Description
Application: General Warranty: 1 Year
Power: Manual Temperature Of Media: High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Structure: Gate Customized Support: OEM
Product Name: Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves Keyword: Flanged Ductile Iron Gate Valve
Calibration Range: DN40~DN1200 Pressure Level: 0.6~1.6MPa
Temperature Range: 0℃~80℃ Transmission Mode: Worm Gear
Applicable Media: Water, Steam, Gas, Oil, Etc Main Material: QT450/WCB, CF8
Type: Gate Valves

Flanged gate valve 2 inch ductile cast iron gate valves

Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 0

Product Description

 Flanged gate valve 2 inch ductile cast iron gate valves

Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 2

Product description:

Magnetic anti-theft soft sealing gate valve is a valve with anti-theft function and excellent sealing performance, widely used in water treatment, construction, municipal engineering and other fields. The valve adopts a magnetic lock, which can effectively prevent illegal opening and theft; The soft sealing design ensures good sealing performance and reduces water leakage; At the same time, the flat bottom valve seat design can avoid debris accumulation and ensure smooth and unobstructed fluid flow. In addition, the magnetic anti-theft soft sealing gate valve also has precise geometric dimensions and good elastic memory, which firmly connects with ductile iron valves. The product is widely used in water treatment, construction, municipal engineering and other fields throughout the country.



Technical parameters:

Nominal Diameter DN50~DN1200
Pressure level 0.6MPa-1.6MPa
Main material QT450/WCB/CF8
Applicable temperature 0℃ to 80;
Design manufacturing standard GB/T12238-2008
Structure length standard GB/T12221-2005
Connecting size standard GB/T17241.6-2008
Pressure test standard GB/T13927-2008
Transmission mode Manual, bevel gear, electric, pneumatic
Applicable Medium Water, steam, gas, oil,etc.



Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 4Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 6Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 8Ordering Notice
1. Price: Due to different product configurations, materials, and models, the product prices may vary. Please confirm the price with the sales manager before placing the order. The prices on the website are for reference only, and the final interpretation is up to the seller.
2 Samples: Our company can provide samples, and if there are inventory samples, we can provide them to customers (if you ask for this). Special requirements or configurations require a certain fee (the fee will be charged based on the actual situation).
3. After sales: If the buyer finds that the quality, color, and quantity of the product are incorrect, please contact customer service in a timely manner to communicate and resolve the issue.



Our Services

 Flanged gate valve 2 inch ductile cast iron gate valves

Our products have become products of 3-High: high technology, high standard, high quality.

Porfessional selection guidance;

Remote technical support;

Professional presale and aftersales service;

Sample order is acceptable.



Company Information

 Flanged gate valve 2 inch ductile cast iron gate valves

Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 10Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 12Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 14Flanged Gate Valve 2 Inch Ductile Cast Iron Gate Valves 16
