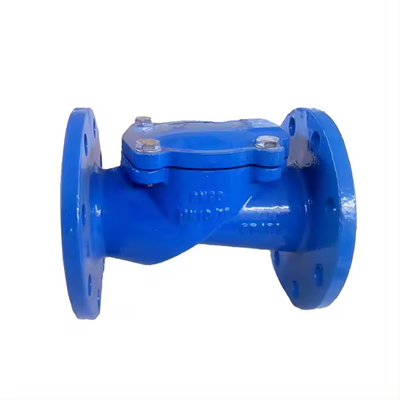

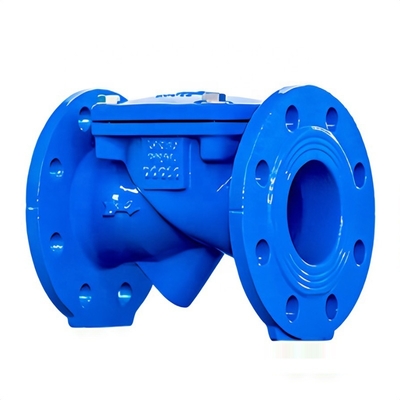

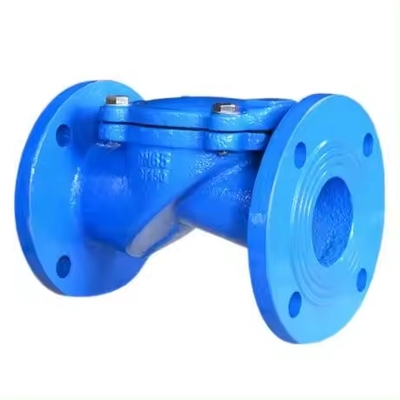

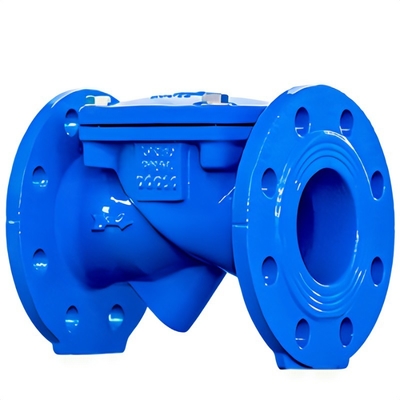

Non Return Valve Irrigation Valve 4 Inch Solar Hydraulic Valves Manufacturer

Product Details:

Place of Origin:	Henan, China

Contact Now

Detailed Product Description

Application:	General	Warranty:	1 Year
Power:	Manual	Structure:	Check
Customized Support:	OEM	Product Name:	Non Return Valve Irrigation Valve 4 Inch Solar Hydraulic Valves
Keyword:	Check Valve	Calibration Range:	DN50~DN800
Pressure Level:	1.0~2.5MPa	Temperature Range:	-10℃~+100℃
Transmission Mode:	Manual	Applicable Media:	Water, Oil, Gas, Etc
Main Material:	Ductile Iron/CS/SS	Type:	Check Valve

Non return valve irrigation valve 4 inch solar hydraulic valves manufacturer

Main technical parameters

Nominal pressure	PN10/PN16/PN25
Face to face standard	GB/T12221-2005, BS5153. DIN F6. EN558-1
Flange connection standard	GB/T17241.6, GB/T9113-2010, EN1092-2
Test standard	GB/T13927-2008, API598
Applicable media	Water, oil, gas, etc

Product structure diagram

Maximum pressure conditions

Size	Max pressure (bar)	Min/Max Temp (℃)	Test Pressure (bar)
			Shell	Seat
DN50-DN800	10.0/16.0/25.0	-10℃ +220℃	15.0/24.0/37.5	11.0/17.6/27.5

Dimensions

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
