The main function is to prevent medium backflow, prevent pump and drive motor from reversing, and prevent the discharge of container medium. It can also be used on pipelines that provide supply to auxiliary systems whose pressure may rise above the system pressure.

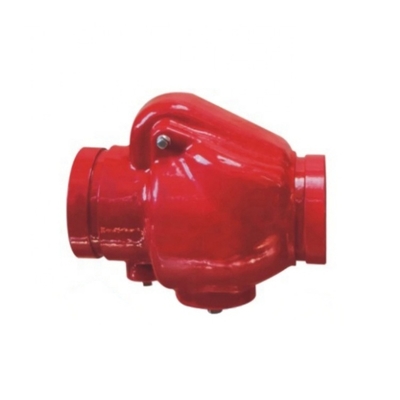

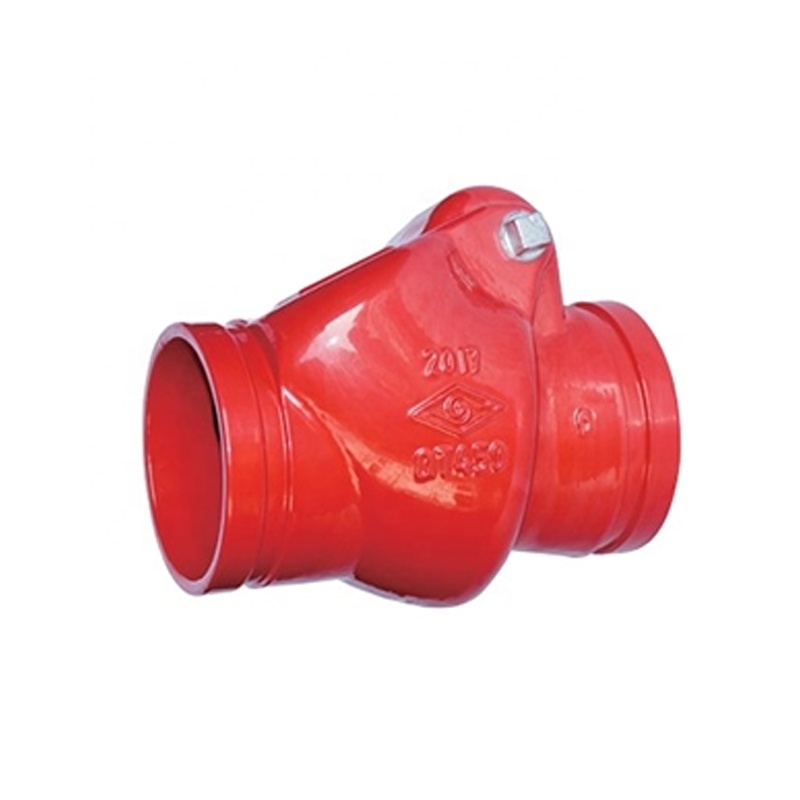

The characteristics of groove check valves
The valve disc is in a circular shape and rotates around the axis of the valve seat channel. Due to the streamlined channel inside the valve, the flow resistance is smaller than that of the butterfly check valve. It is suitable for large diameter applications with low flow rates and infrequent flow changes, but not suitable for pulsating flow. Its sealing performance is not as good as that of the lifting type.
Main technical parameters
Nominal pressure
PN10/PN16/PN25
Grooved connection standard
AWWA C508/C606
Test standard
GB/T13927-2008, API598
Applicable media
Water, oil, gas, etc.
Maximum pressure conditions
Size
Max pressure (bar)
Min/Max Temp (℃)
Test Pressure (bar)
Shell
Seat
DN50-DN200
10.0/16.0/25.0
-10℃ +100℃
15.0/24.0/37.5
11.0/17.6/27.5
Dimensions
FAQ:
Q. Can I have my own Logo on the product?
A: Yes, OEM service is available.
Q.What information should I let you know if I want to get a quotation?
A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
Q: What is your terms of delivery?
A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.
Q: What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
