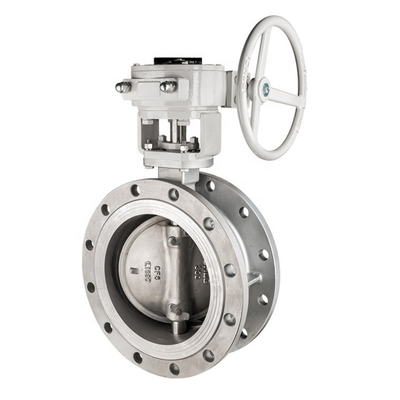

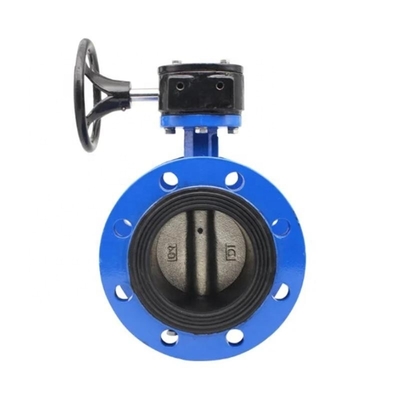

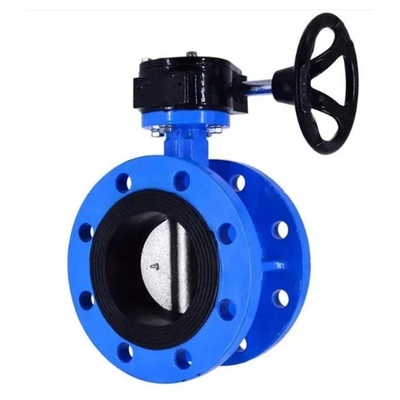

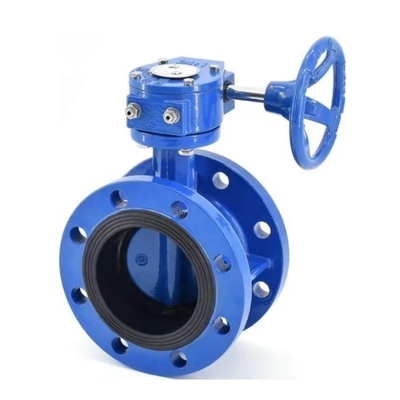

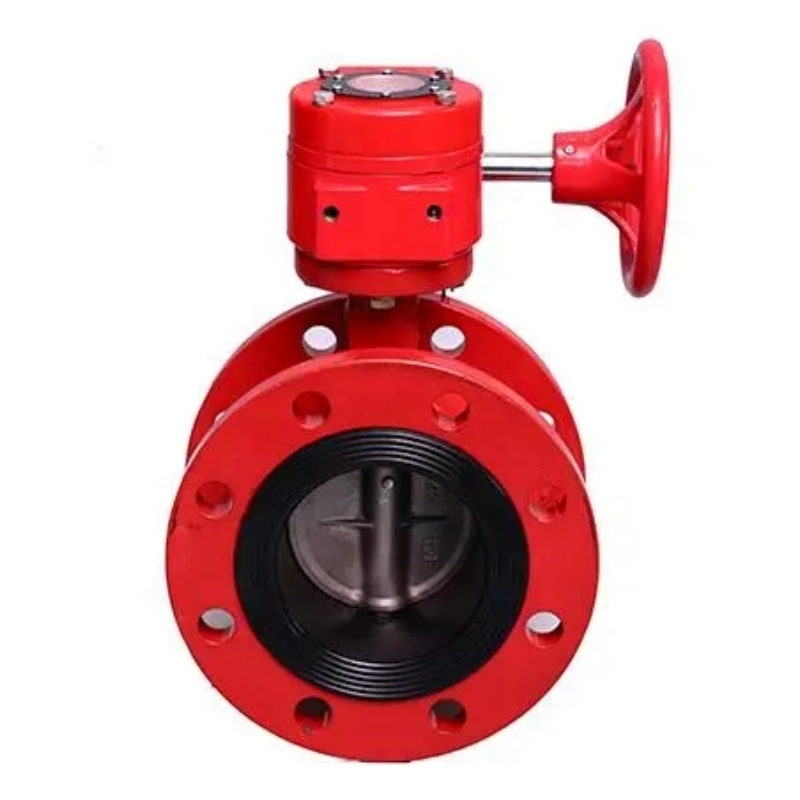

Fire Fighting Flange Butterfly Valve

Fire Fighting Flange Butterfly Valve

  • Fire Fighting Flange Butterfly Valve
  • Fire Fighting Flange Butterfly Valve
  • Fire Fighting Flange Butterfly Valve
  • Fire Fighting Flange Butterfly Valve
  • Fire Fighting Flange Butterfly Valve
  • Fire Fighting Flange Butterfly Valve
Fire Fighting Flange Butterfly Valve
Product Details:
Place of Origin: Henan, China
Contact Now
Detailed Product Description
Application: General Warranty: 1 Year
Power: Manual Structure: BUTTERFLY
Customized Support: OEM Product Name: Fire Fighting Flange Butterfly Valve
Keyword: Fire Fighting Flange Butterfly Valve Calibration Range: DN40~DN600
Pressure Level: 1.0~1.6MPa Temperature Range: -10℃~+100℃
Transmission Mode: Manual Applicable Media: Water, Oil, Gas, Etc
Main Material: Ductile Iron/CS/SS Type: Butterfly Valve

Fire Fighting Flange Butterfly Valve



Fire Fighting Flange Butterfly Valve 0





Main technical parameters

Nominal pressure PN10/PN16/PN25/PN40, 125LB/150LB, 5K/10K/16K
Face to face standard

GB/T12221, API609, EN558-1

Flange connection standard

GB/T17241.6, GB/T9113-2010, EN1092-2

Test standard GB/T13927-2008, API598
Applicable media Water, oil, gas, etc





Product structure diagram

Fire Fighting Flange Butterfly Valve 2

Maximum pressure conditions

Size Max pressure (bar) Min/Max Temp (℃) Test Pressure (bar)
Shell Seat
DN40-DN600 10.0/16.0 -10℃ +100℃ 15.0/24.0 11.0/17.6





Dimensions

Fire Fighting Flange Butterfly Valve 4





Ordering notice:

1.Price: The price here is only for reference, the accurate price please contact us to get.

2.Delivery time: The lead time need to calculate according to product parameters, quantity, etc. Please contact us for accurate answer.

3.After-sales service: If you have any questions after you get the product you get from us, please feel free to contact us, we have technical engineer to help you.







FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.



Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.



Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.



Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
