Knife Gate Valve Non-rising Stem Type

Product Details:

Place of Origin:	China

Contact Now

Detailed Product Description

Application:	General	Warranty:	1 Year
Power:	Manual	Structure:	Gate
Customized Support:	OEM, OBM, Software Reengineering	Product Name:	Knife Gate Valve Non-rising Stem Type
Keyword:	Knife Gate Valve Non-rising Stem Type	Calibration Range:	DN40~DN400
Pressure Level:	1.0~1.6MPa	Temperature Range:	-10℃~+100℃
Transmission Mode:	Manual	Applicable Media:	Water, Oil, Gas, Etc
Main Material:	Cast Iron, Carbon Steel, Stainless Steel, Etc.	Type:	Gate Valve

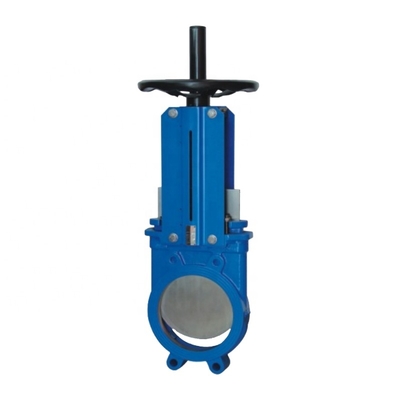

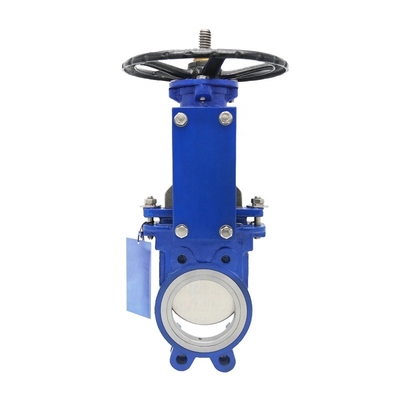

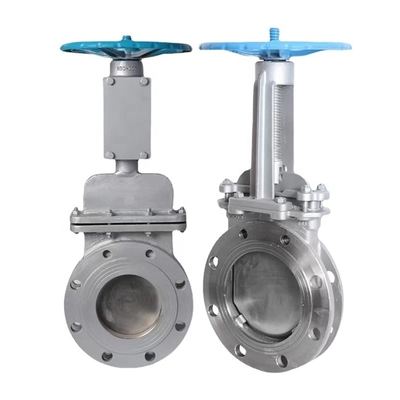

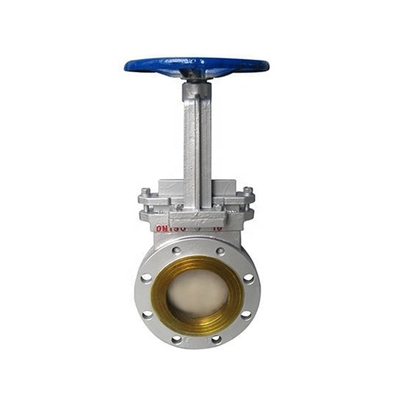

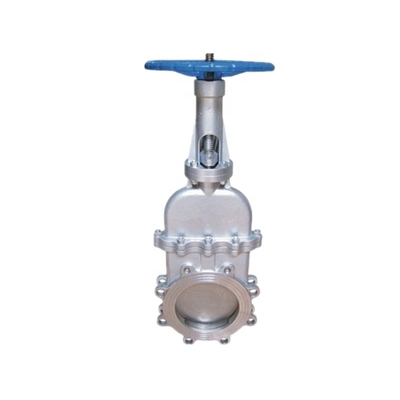

Knife Gate Valve Non-rising Stem Type

Product Description

The use of concealed stem knife shaped gate valves

The concealed stem knife shaped gate valve has the advantages of simple and compact structure, reasonable design, lightweight and material saving, reliable sealing, light and flexible operation, small volume, smooth channel, small flow resistance, light weight, easy installation, and easy disassembly. It can work normally under working pressure of 1.0MPa-2.5MPa and operating temperature of -29-650 ℃. The blade gate valve has a shearing function on its gate plate, which can scrape off the adhesive on the sealing surface and automatically remove debris. The stainless steel gate plate can prevent sealing leakage caused by corrosion.

Performance characteristics of concealed stem knife shaped gate valves

The upper seal of this knife shaped gate valve breaks through the conventional sealing form and adopts an upper cover structure, which changes the upper seal from a large rectangular seal to a small circular seal, greatly improving the sealing performance. On the basis of circular sealing, advanced floating sealing structures are also adopted internationally, which enables the upper seal to have the same lifespan as the pipeline, thereby improving the overall service life of the valve.

Specification

Main technical parameters
Nominal pressure:	PN10/PN16/PN25/PN40,125LB/150LB.5K/10K/16K
Design and manufacturing standards	JB/T8691-1998
Face to face standard	EN558-1, GB/T15188.2-94
Flange connection standard	GB/T17241.6.EN1092-2
Test standard:	GB/T13927-2008, AP1598
Applicable media:	Water, oil, gas, etc.

Size	Max pressure (bar)	Min/Max Temp (℃)	Test Pressure (bar)
Size	Max pressure (bar)	Min/Max Temp (℃)			Shell	Seat
DN40-DN400	10.0/16.0	-10℃ +100℃	15.0/24.0	11.0/17.6
